UT-070C-10

UT-070C-10

Share Share
Print Share
$19.06
  • Shipping:
    Calculated at Checkout

Price Breaks Per Foot:

Below are the price breaks per ft. Semi-Rigid Coax Cable is sold as 5 ft. straight lengths (pieces). Maxform and M-Flex cable sold by coil / reel. Place order for total footage required. eg. 25ft=25, 100ft=100. Please email sales@tek-stock.com for qtys over 500ft

  • Buy 5 - 14 ft. and pay only $30.00 per ft.
  • Buy 15 - 24 ft. and pay only $19.06 per ft.
  • Buy 25 - 49 ft. and pay only $15.10 per ft.
  • Buy 50 - 99 ft. and pay only $12.85 per ft.
  • Buy 100 - 0 ft. and pay only $11.07 per ft.
Attention International Customers: Please complete the BIS-711 Form (end user statement). Processing your order may take 2-3+ additional days.
Data Sheet View Datasheet
customer Service
Contact our Sales Team for a tailored experience
978-792-5247 Email usEmail us
Adding to cart… The item has been added

Description



UT-070C-10

Semi-Rigid Coaxial Cable
MECHANICAL CHARACTERISTICS
Outer Conductor Diameter, inch (mm) 0.070 +/- 0.001  (1.778 +/- 0.025)
Dielectric Diameter, inch (mm) 0.05  (1.27)
Center Conductor Diameter, inch (mm) 0.0403 +/- 0.0005  (1.0236 +/- 0.0127)
Maximum Length, feet (meters) 20  (6.1)
Minimum Inside Bend Radius, inch (mm) 0.125  (3.175)
Weight, pounds/100 ft. (kg/100 meters) 1.28  (1.91)
ELECTRICAL CHARACTERISTICS
Impedance, ohms 10 +/- 2.0
Frequency Range GHz DC - 58
Velocity of Propagation % 70
Capacitance, pF/ft. (pF/meter) 145 (475)
Typical Insertion Loss, dB/ft. (dB/meter)
and Average Power Handling, Watts CW at 20
degrees Celsius and Sea level		 Frequency Insertion Loss Power
0.5 GHz
1.0 GHz
5.0 GHz
10.0 GHz
20.0 GHz		 0.51 (1.16)
0.72 (1.64)
1.63 (3.72)
2.33 (5.31)
3.35 (7.64)		 43.2
30.5
13.5
9.4
6.6
Corona Extinction Voltage, VRMS @ 60 Hz 500
Voltage Withstand, VRMS @ 60 Hz 1000
ENVIRONMENTAL CHARACTERISTICS
Outer Conductor Integrity Temperature, Deg Celsius 150
Maximum Operating Temperature, Deg Celsius 125
MATERIALS
Outer Conductor COPPER
Dielectric PTFE
Center Conductor SPC

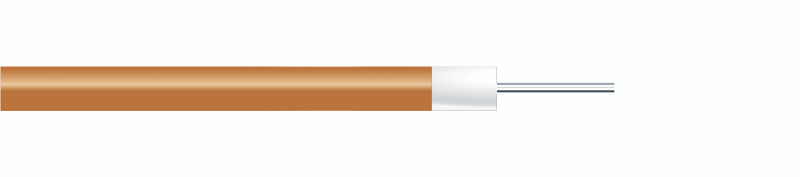

CUTAWAY
